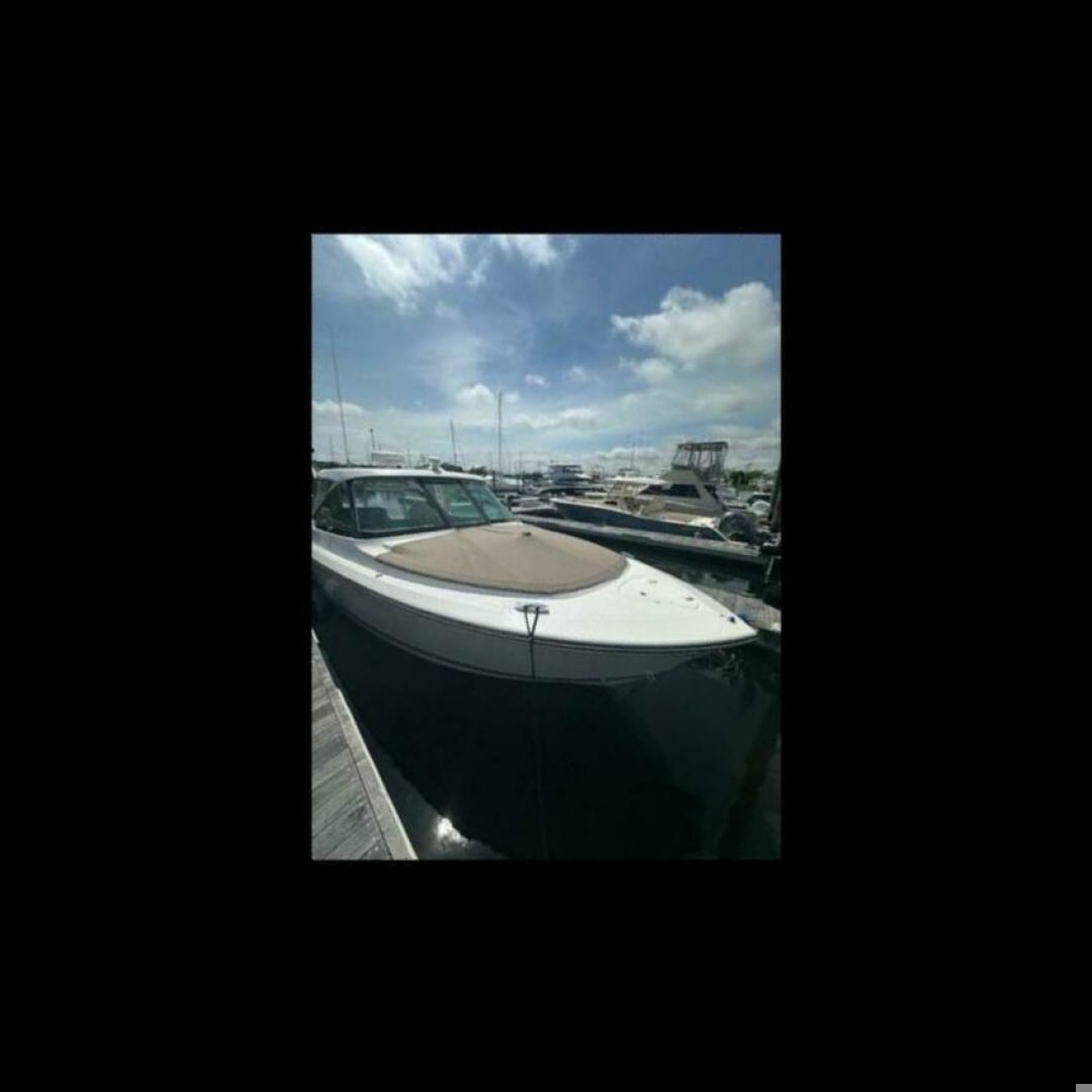

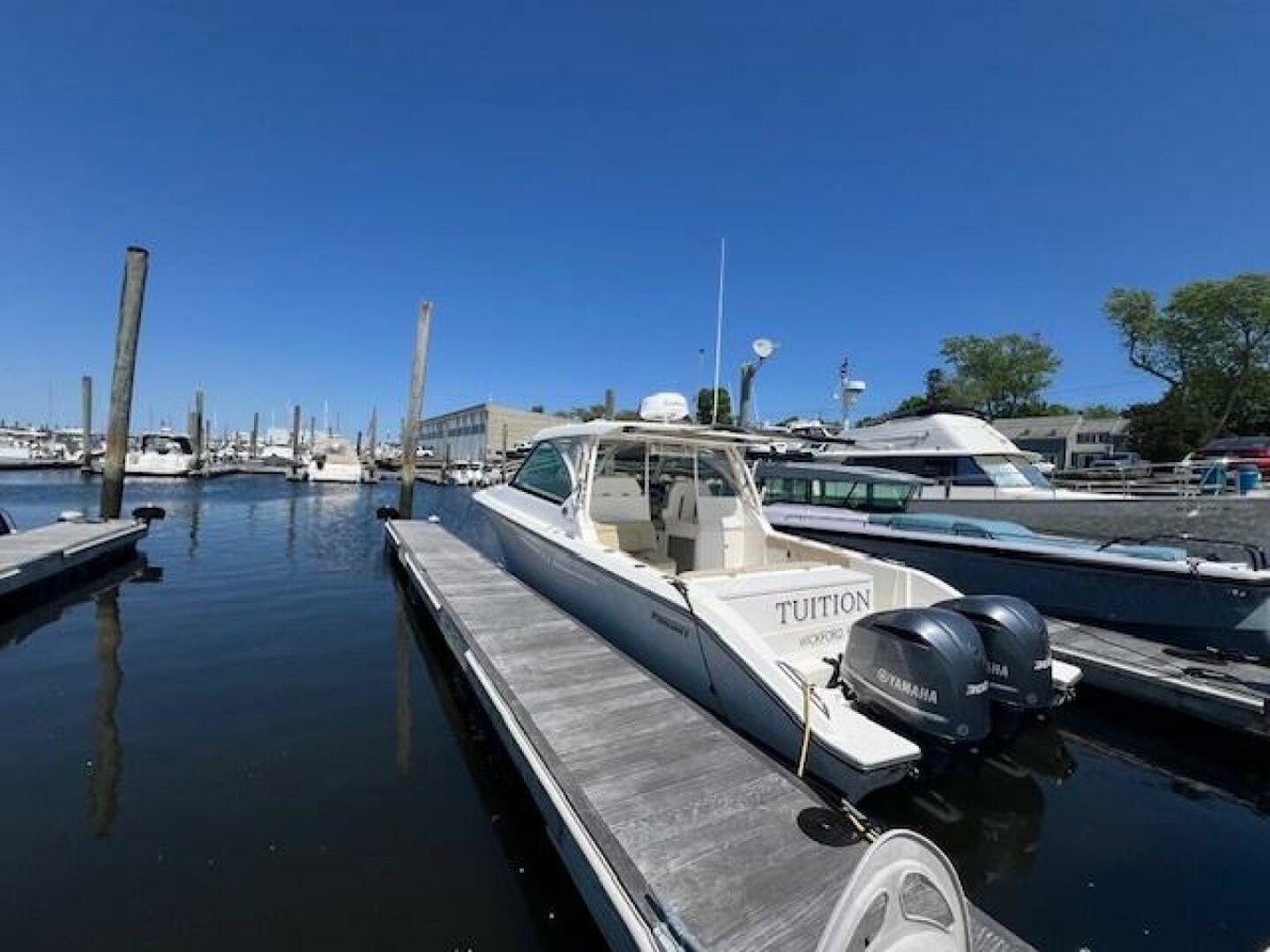

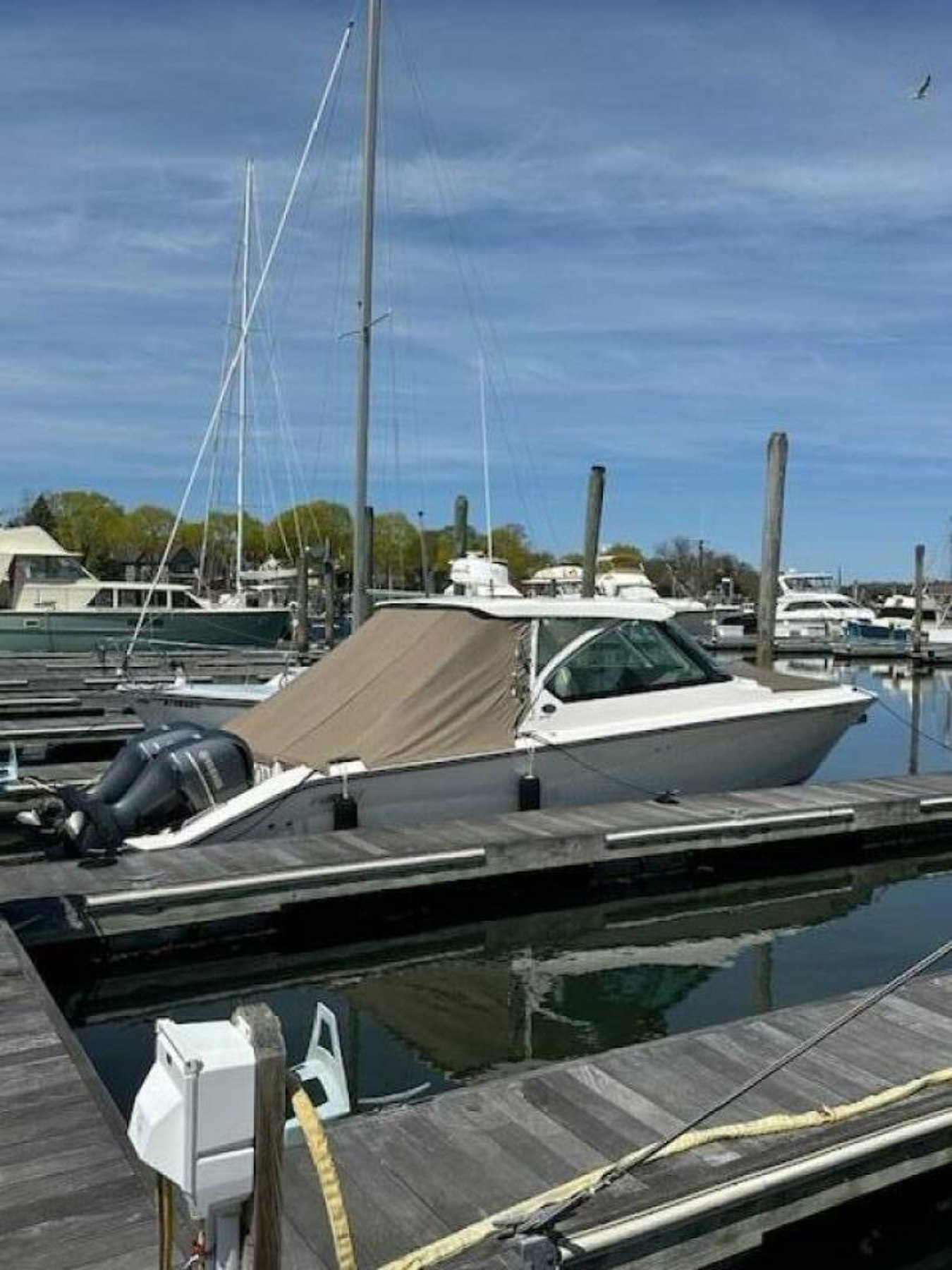

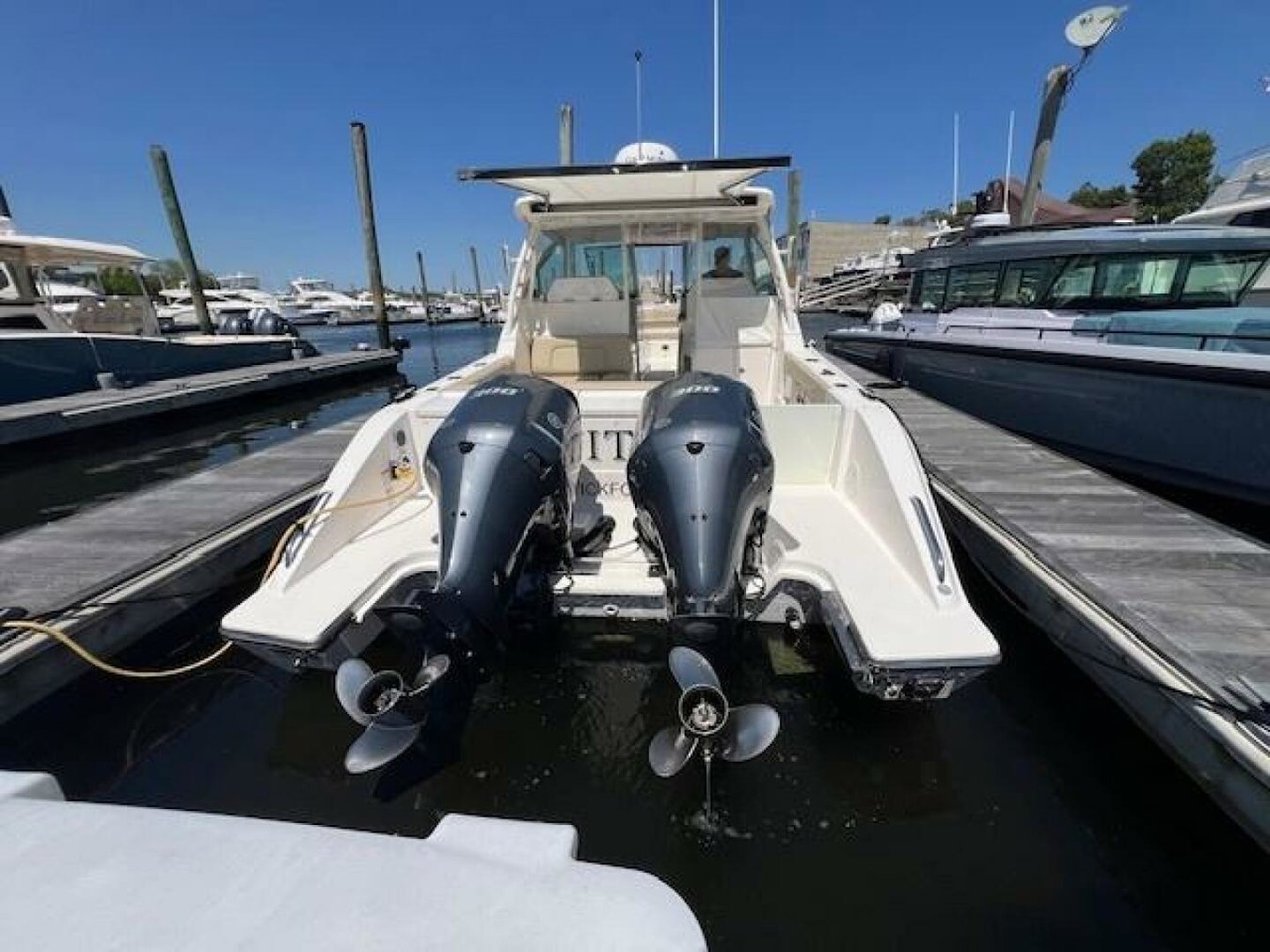

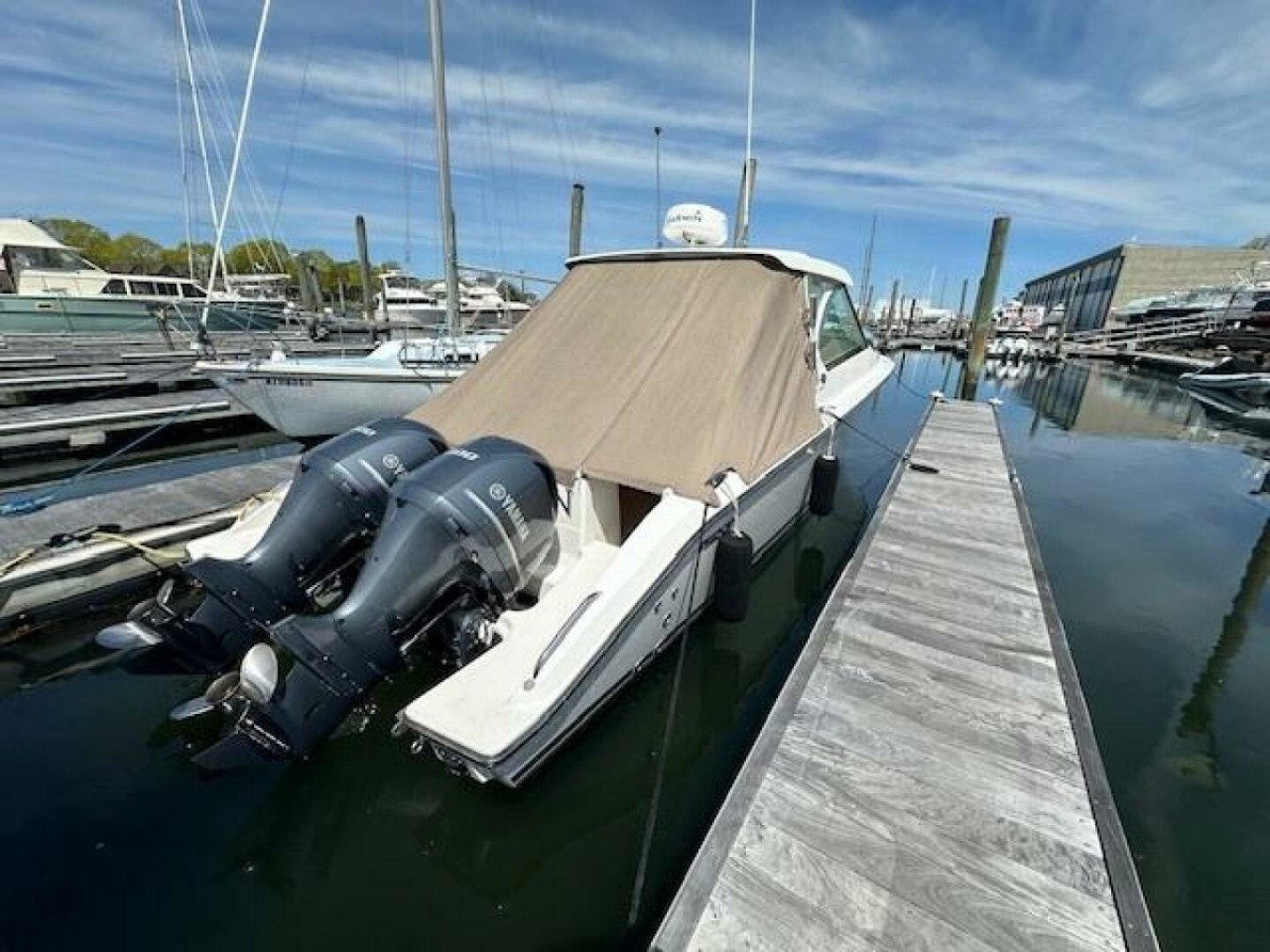

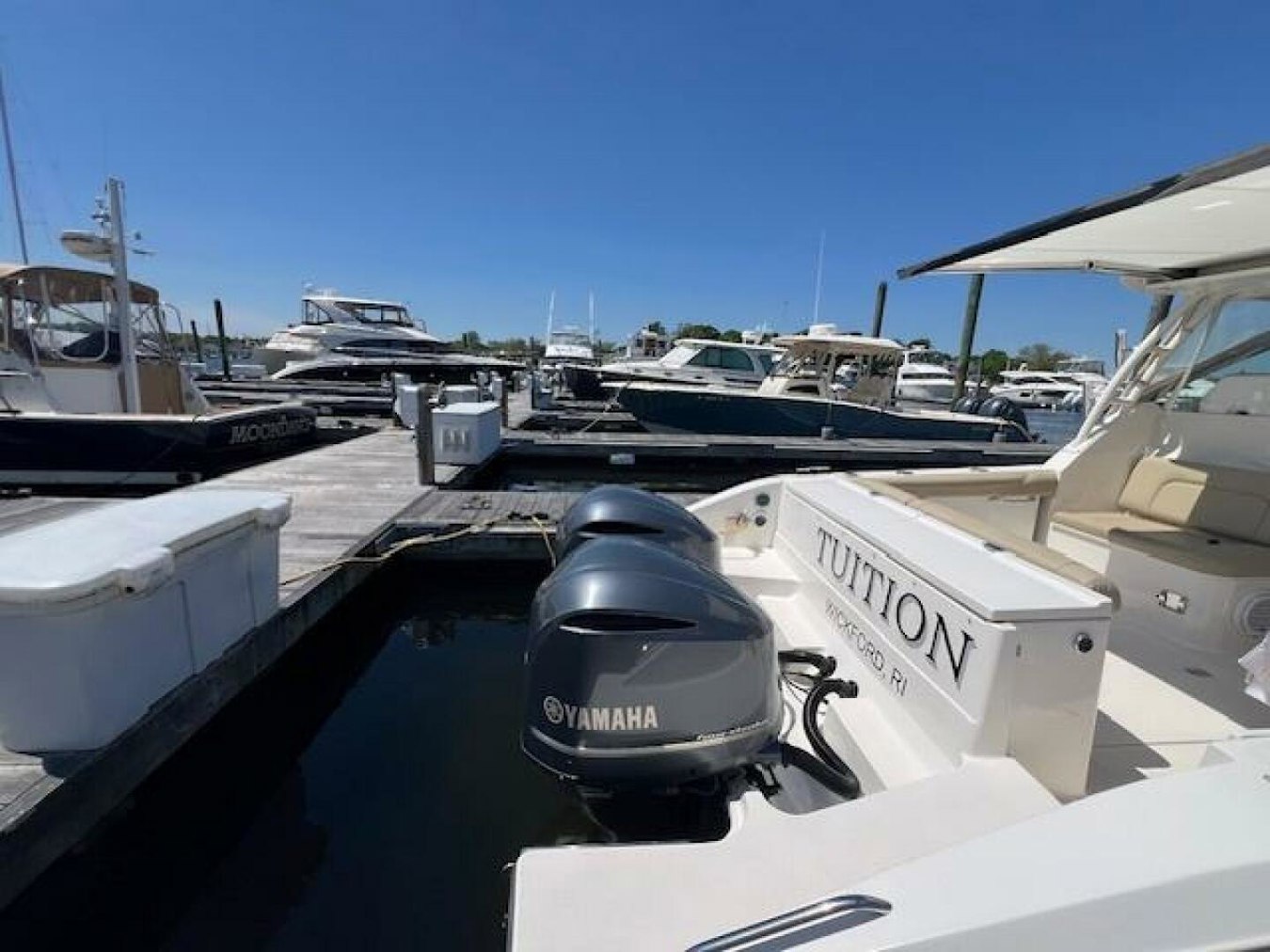

2017 Pursuit 325

Hull Features

• Pursuit® Protection Plan:
• 5‐Year Hull and Deck Structural Warranty
• 5‐Year Blister Free Warranty
• 2‐Year Limited Warranty
• Hand laminated hull with vinyl ester resin and engineered fabrics
• Infused fiberglass structural grid system with molded finish and integrated bilge water management system
• 5 Ply resin infused composite transom system with patented transom reinforcement grid
• Integrally molded thru-stem anchor system with fresh and raw water washdown
• Horizontal anchor windlass with switch at helm and remote
• 316L stainless steel delta plow style anchor, twist shackle, chain and 200’ of 1/2” rode
• 316L stainless steel through stem anchor roller with 8” mooring cleat, chain binder and aluminum backing plates
• 3.0 hp bow thruster with group 31 AGM battery
• Trim tabs with indicator lights and auto-retract
• Bronze thru hull fittings below water line
• Chrome over bronze thru hull fittings below 7º heel line
• Stainless clad composite thru hull fittings above the 7º heel line
• Bronze garboard drain
• Integrated transom platforms extensions outboard of engines
• Forward hull compartmentation with one 1100 GPH bilge pump with automatic float switch
• Dedicated transducer location
• High density pvc rub rail with solid 316L stainless steel insert
• ½“ 316L stainless steel bow eye

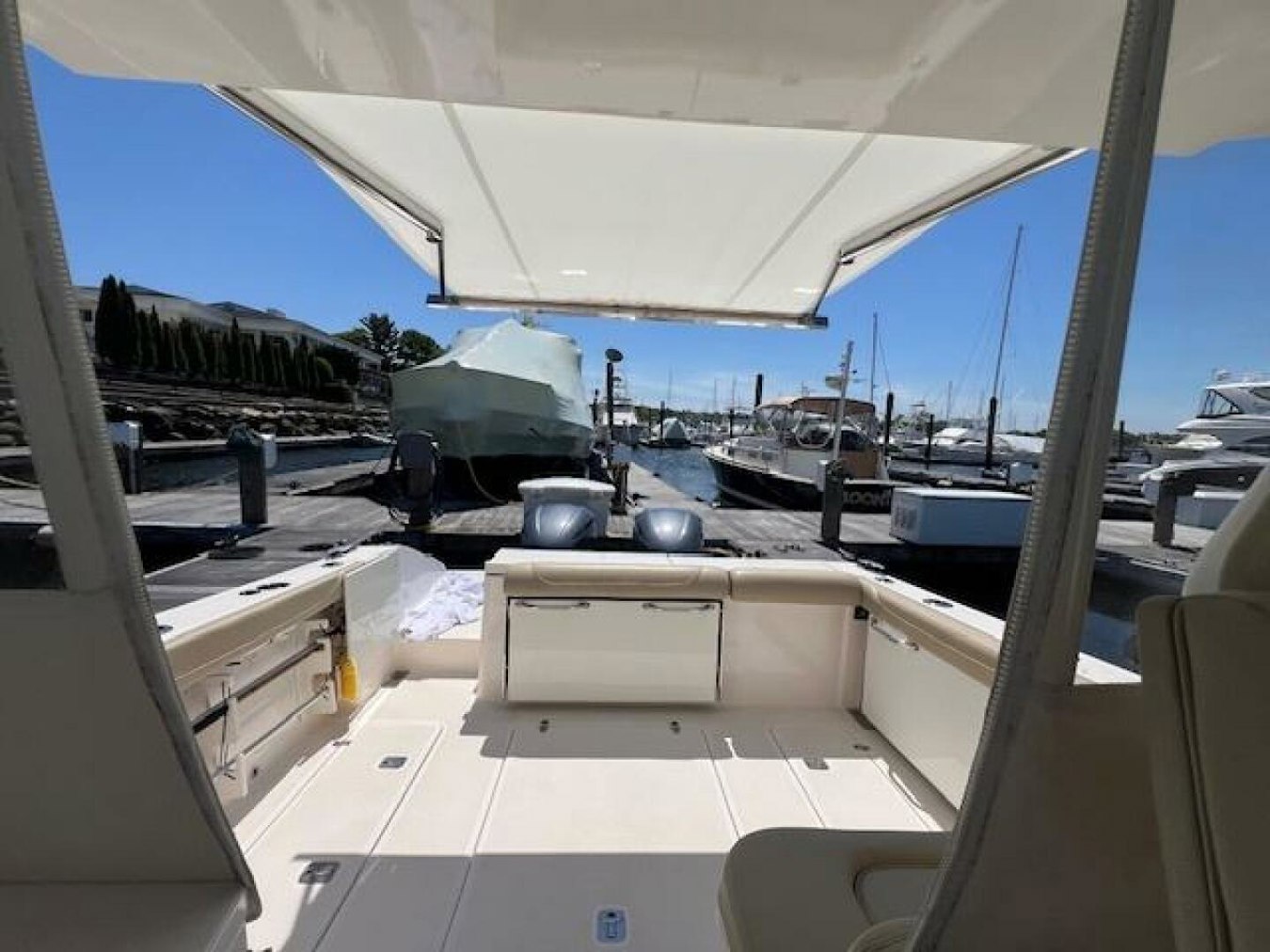

Deck and Cockpit Features

• Molded one piece deck and cockpit liner with non-skid pattern area and overboard drains
• Hull and deck joint mechanically fastened
• 10” Pop up cleats (2) on stern and 10” pop up cleats spring (2) and bow (2)
• Molded recessed hatches with gaskets and 316L stainless steel latches and overboard drain tracks

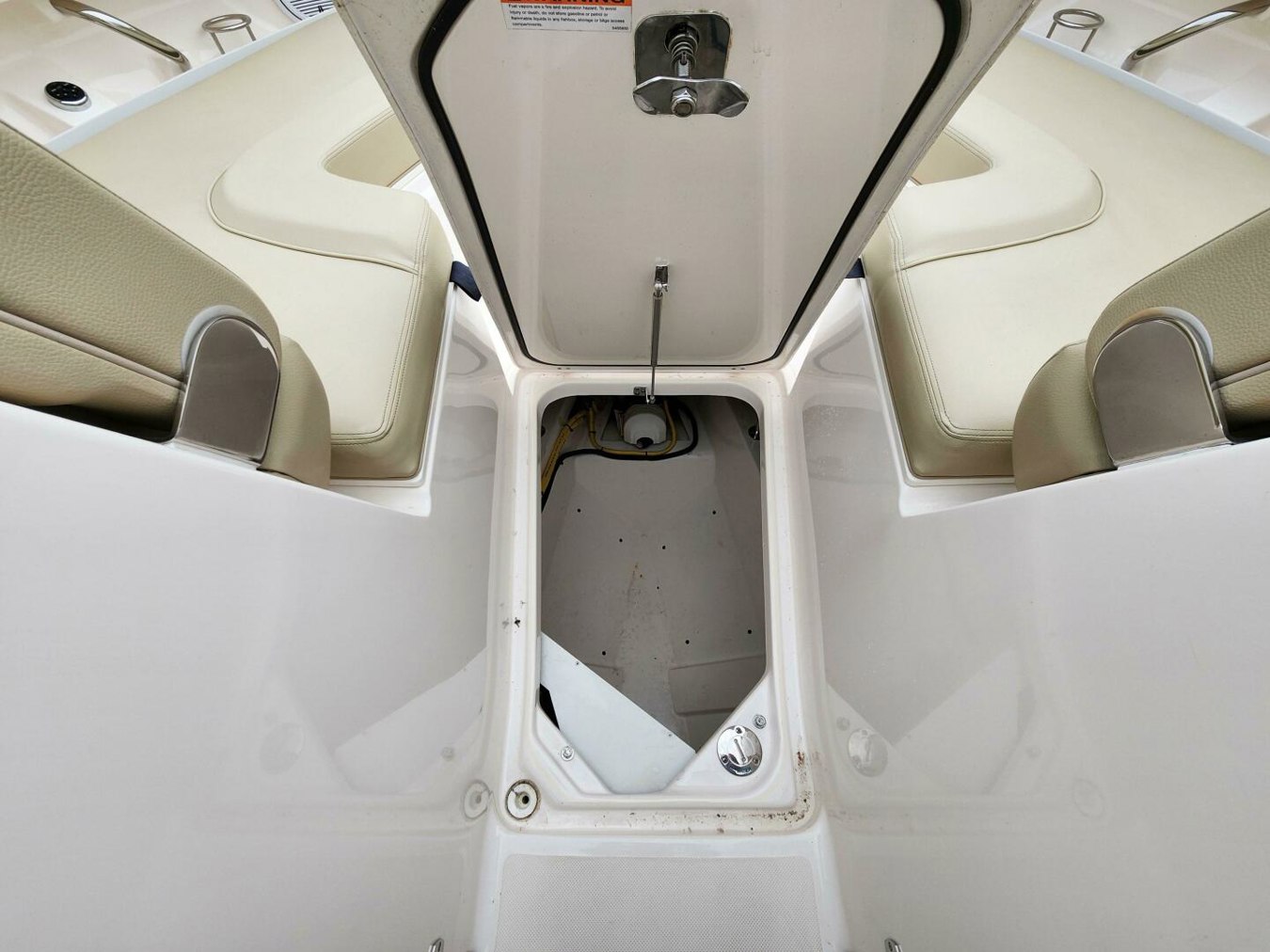

• Flush mounted integral anchor locker with fiberglass lid
• One piece 1” welded 316L stainless steel recessed bow grab rail

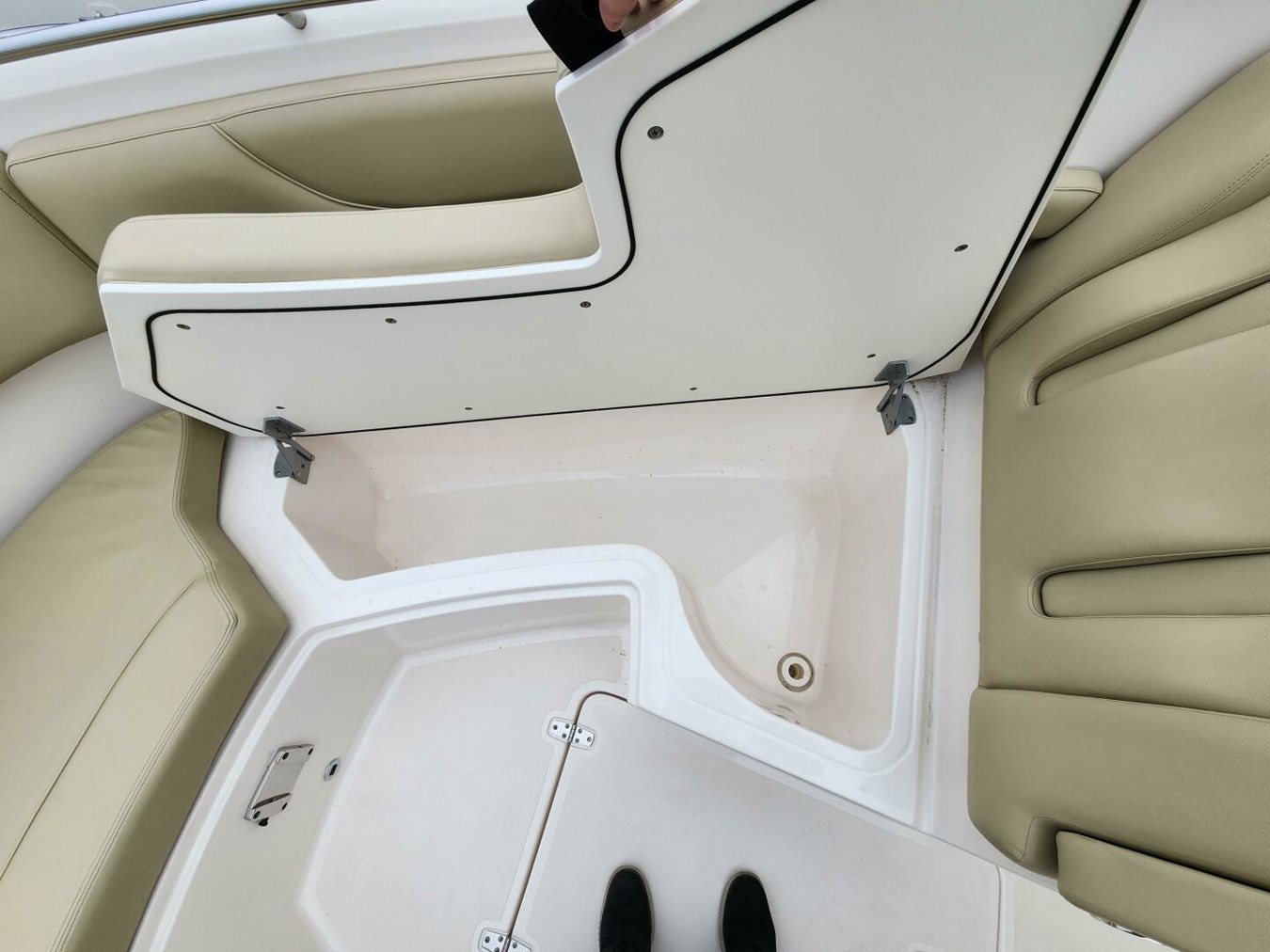

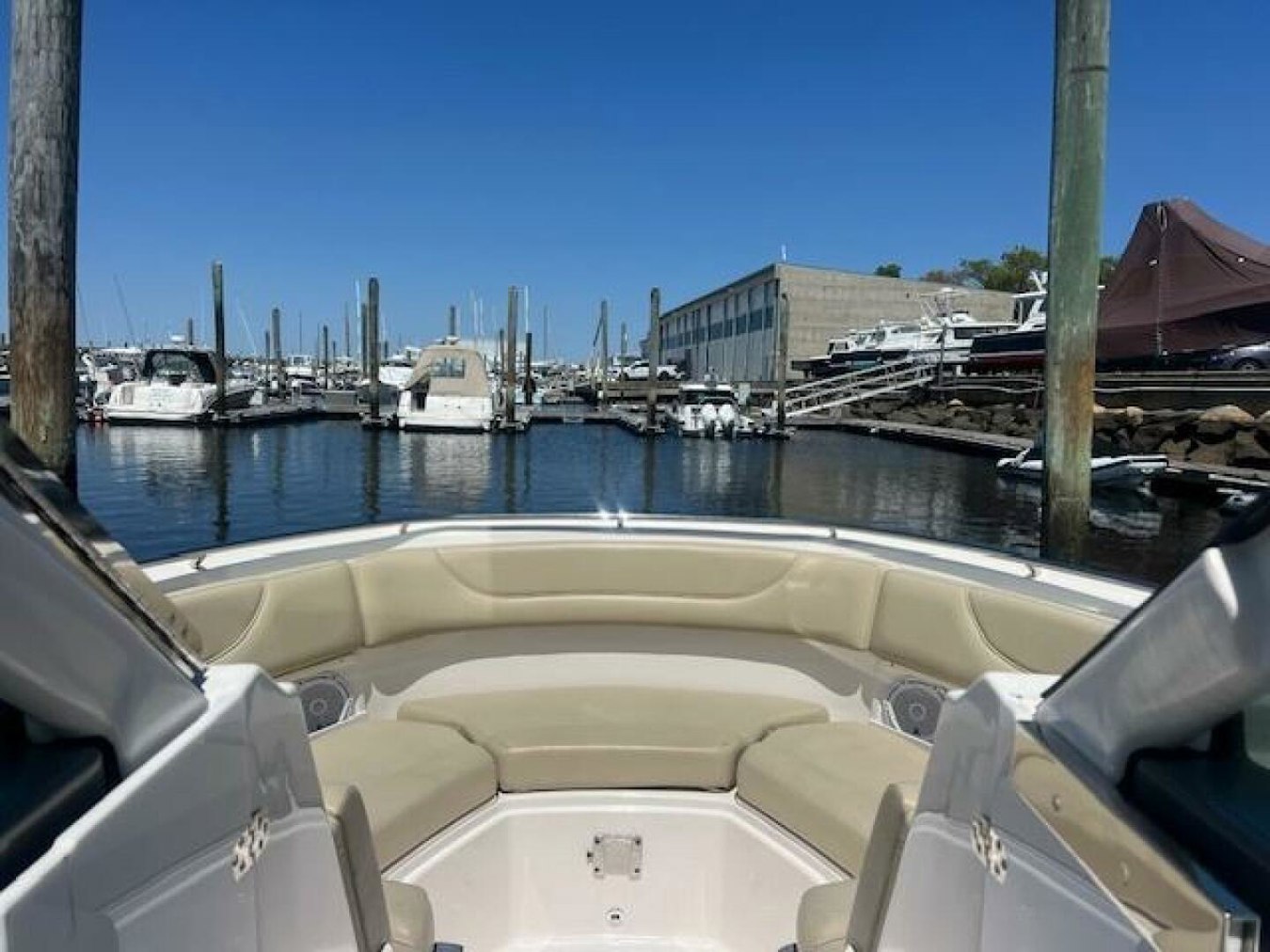

• Molded forward bow seating with flip down arm rests and insulated storage below
• Port and starboard forward coaming boxes with four (4) drink holders, grab rails, courtesy lights, storage keeper, port stereo remote and speakers
• 316L stainless steel deck plates for water and waste
• Two (2) 316L stainless steel rod holders in gunwale with four (4) drink holders
• Under gunwale rod storage, starboard
• Molded transom walkthrough and hinged HDPE transom door with 316L stainless steel latch and magnetic catch
• Port and starboard 316L stainless steel transom grab rails
• Molded non-skid steps in splashwell for athwartship access
• Custom cockpit upholstery with dri-fast foam and mesh backing
• Captain’s chair with foldable armrests, fore and aft adjustment with storage below

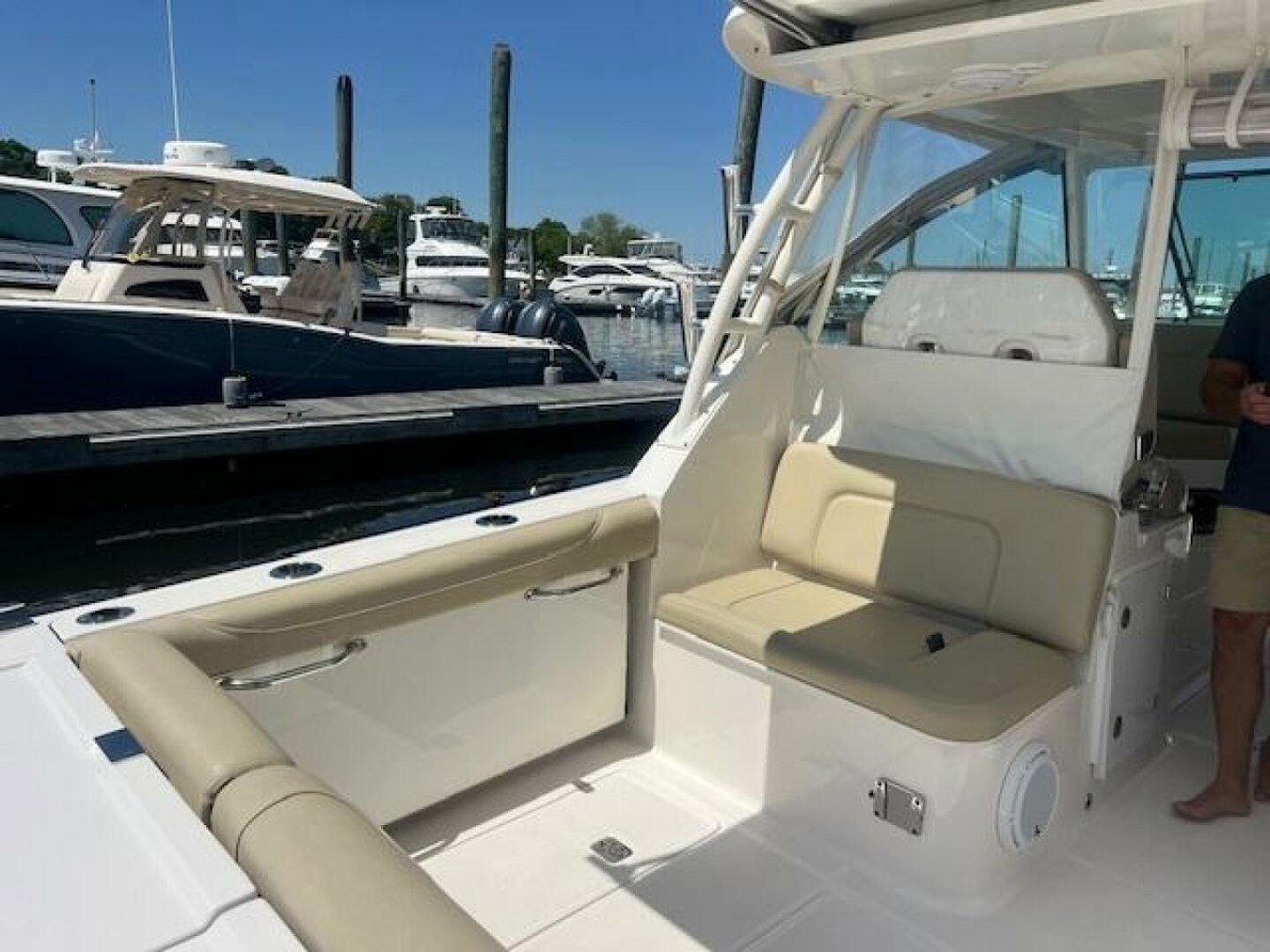

• Molded port bridge lounge seating with footrest
• Pursuit cockpit entertainment system: 12v bluetooth® compatible stereo system, premium speakers (7 total, 4 In hardtop, 2 in bow, & subwoofer), amplifier and zonal remotes (3)
• Molded entertainment center with sink, hot/cold mixing faucet, trash can, drink holders, cutting board and hinged fiberglass lid and door

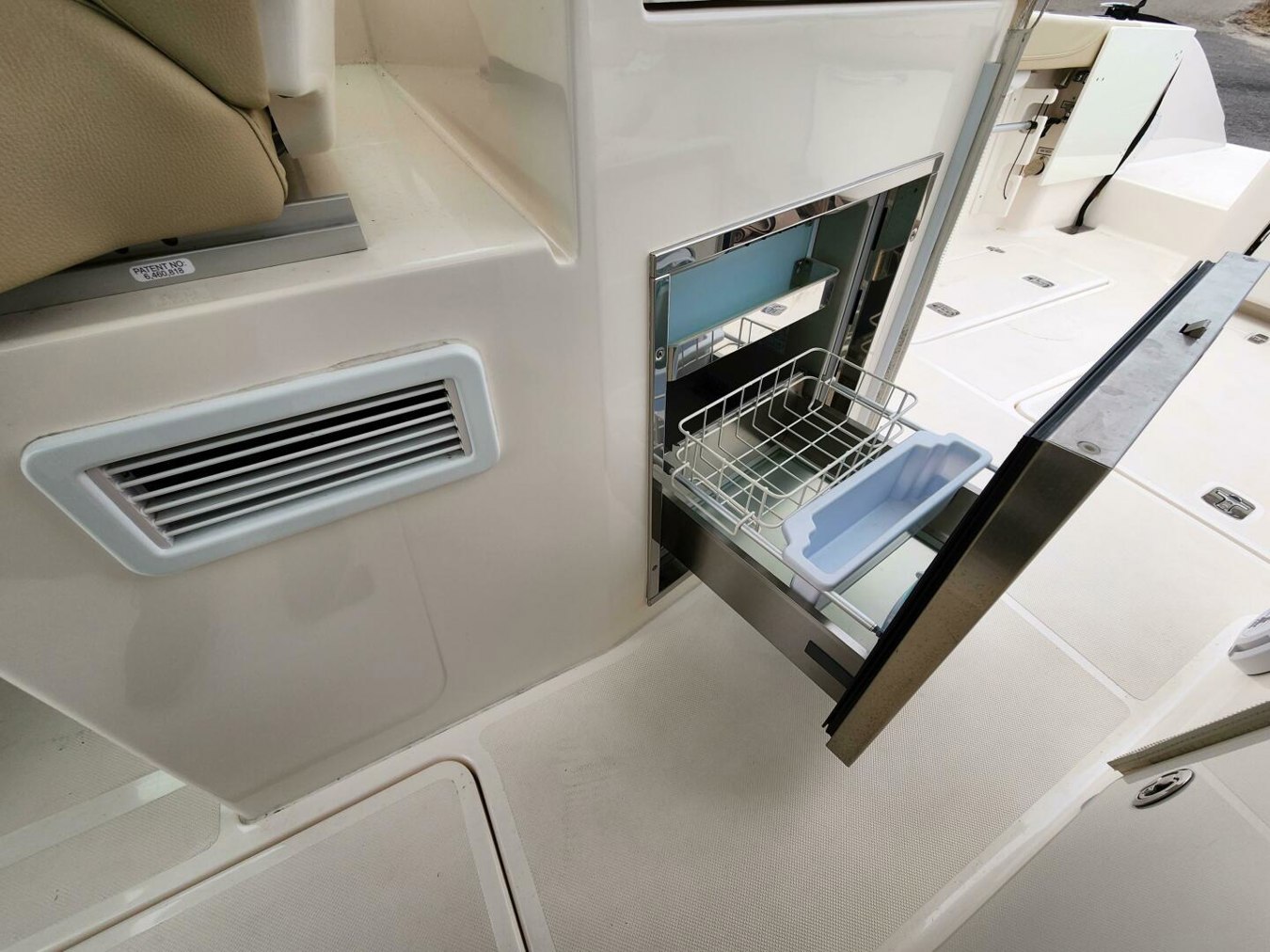

• 12v, 2.3ft3 stainless steel drawer refrigerator with 3m protective film
• Lighted oceana blue 24 gallon recirculating livewell
• Cockpit tackle center

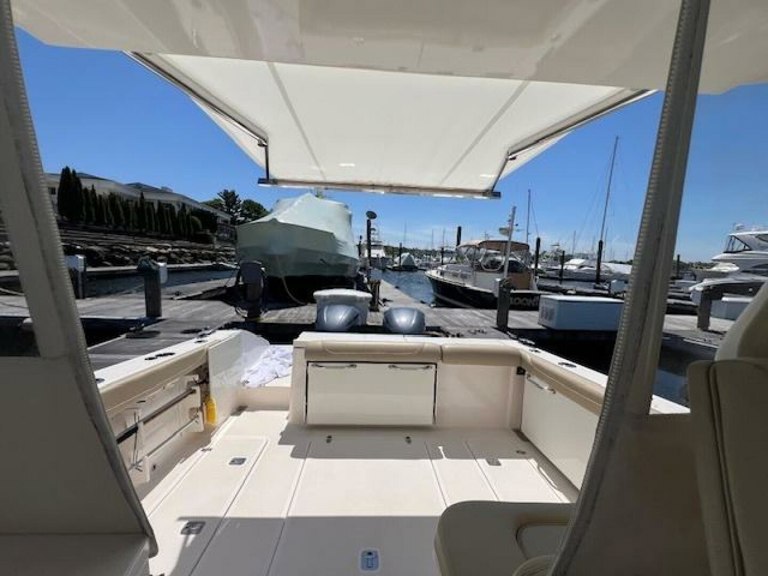

• Molded aft facing cockpit seat with insulated storage below
• Folding starboard fiberglass boarding step
• Folding port gunwale seat
• Folding transom seat with patented adjusting backrest

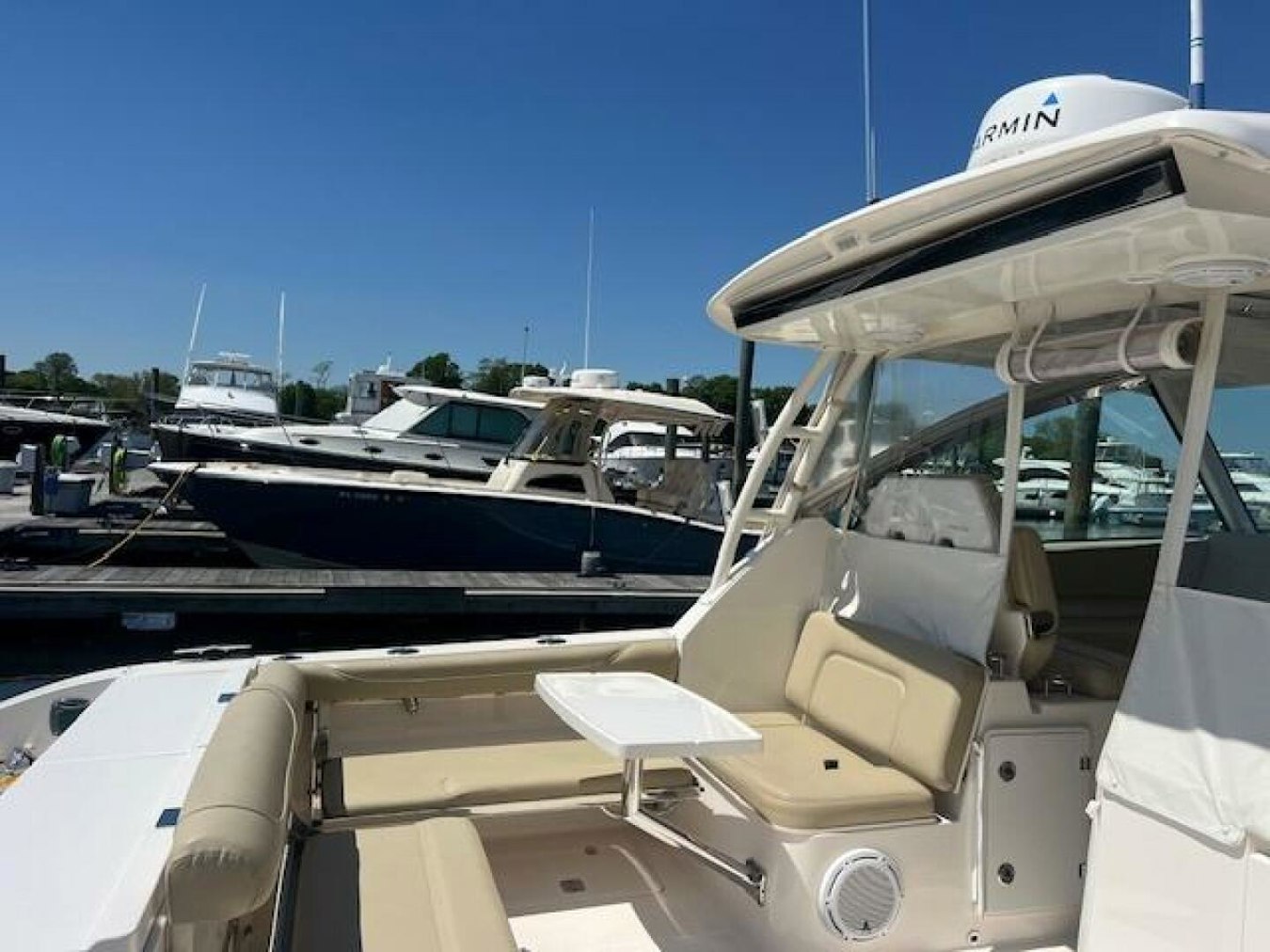

• Custom molded cockpit table with dual mounting locations and dedicated storage
• Four (4) 316L stainless steel drink holders on bridges lounge, two (2) acrylic drink holders at helm

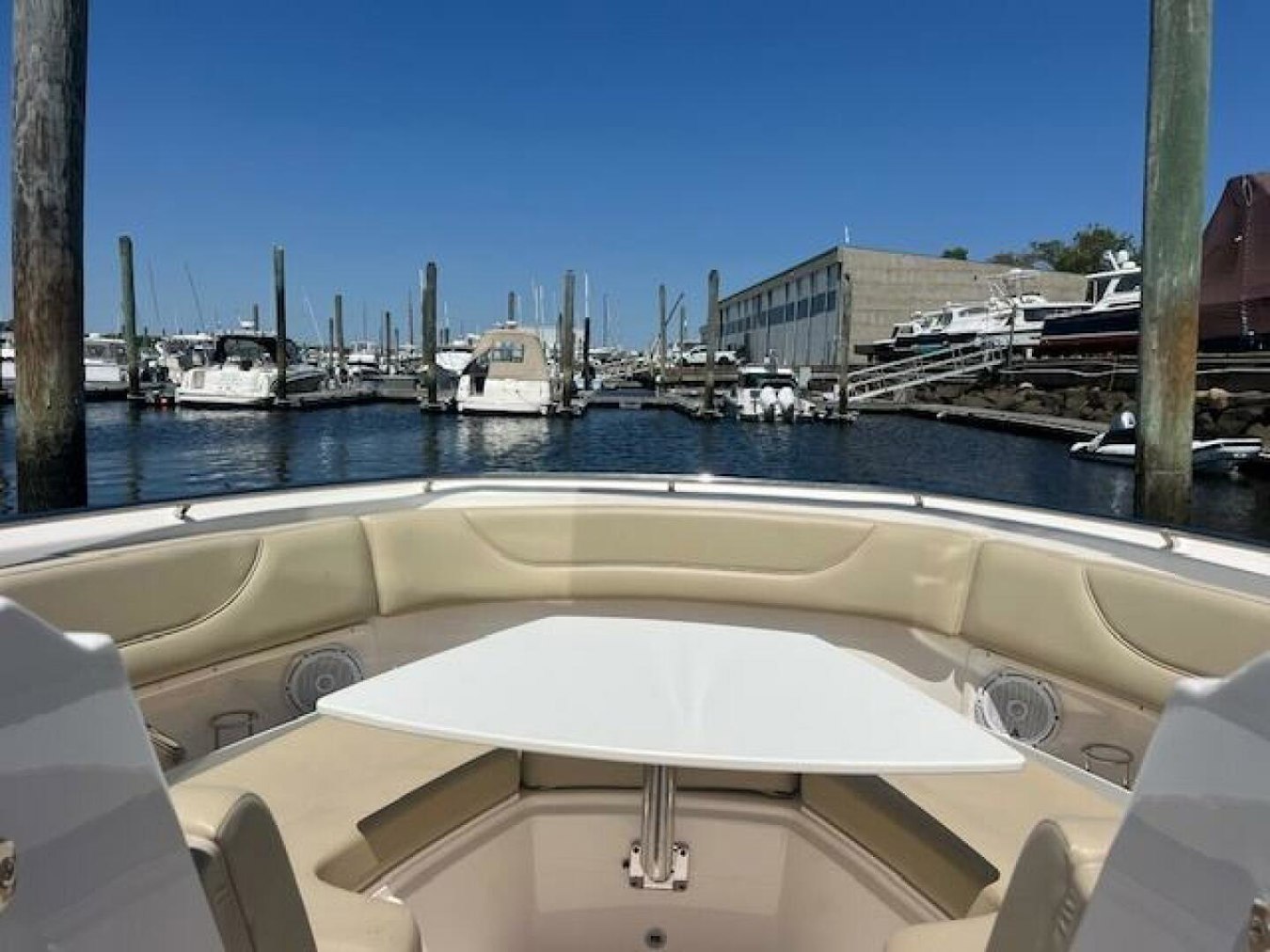

• Forward cockpit table/bow sunpad filler

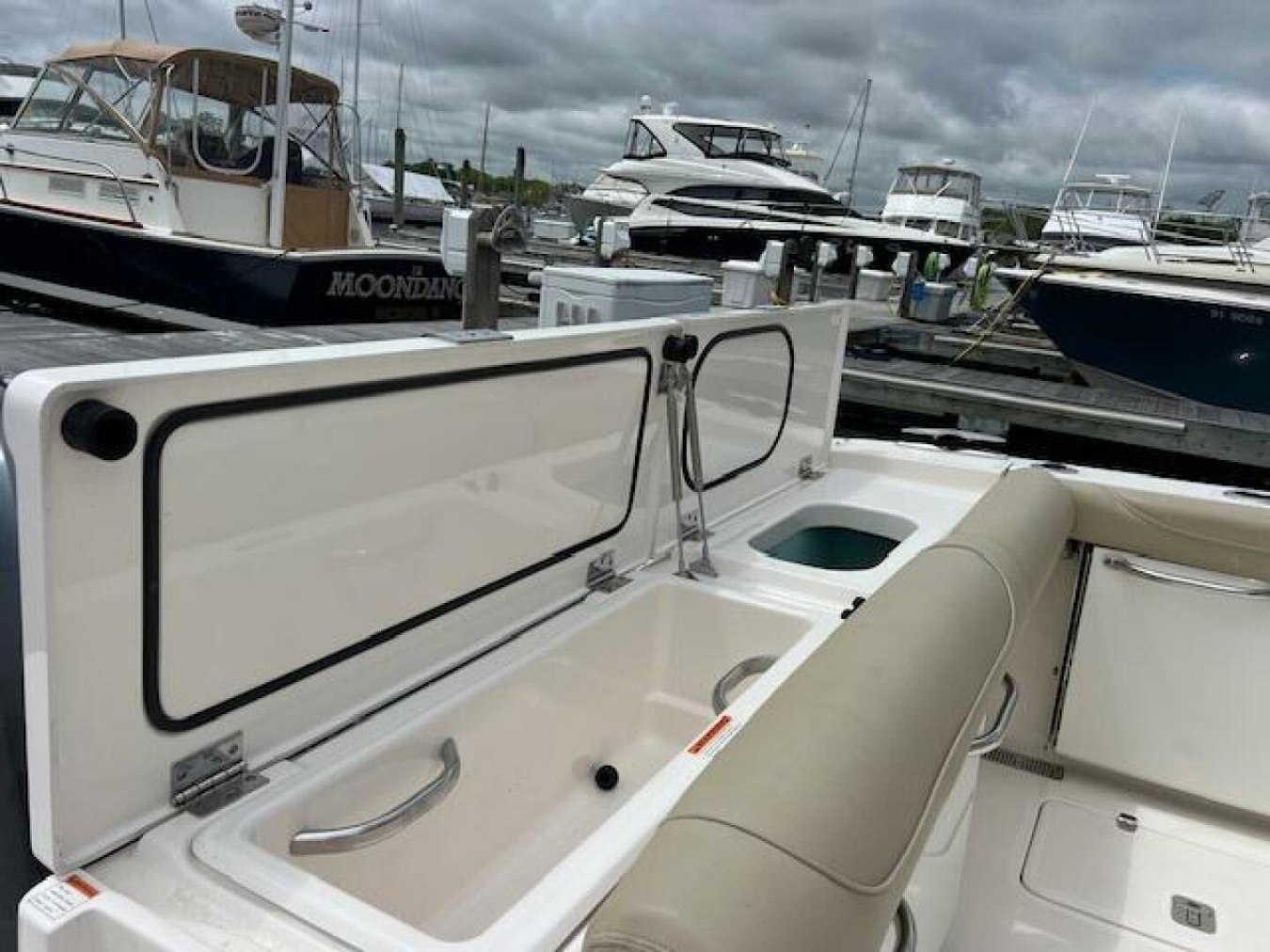

• Port and starboard insulated fish boxes
• Cockpit machinery access hatch
• Bow machinery access hatch
• Mid-ship machinery access hatch
• Fresh water wash with chrome over brass pull out sprayer
• Raw water outlet in cockpit with quick connect fittings and 25’ hose
• LED cockpit accent lights (7) with water proof switch in cockpit
• Port and starboard 2 mile LED navigation lights

Console Interior Port Side

• Single motion dual action console access door with gasket and 316L stainless steel locking latch
• Cabin entry step
• Molded console hull liner with pattern area and drainage
• Molded console deck liner
• Dedicated storage for rods (4), bow and cockpit tables, safety gear, and hanging locker
• Padded fishing reel protector for rod storage
• Convertible berthing accommodations/seating with cushions
• Opening port light and screen
• Two switch panel with overhead LED lights (3) LED floor accent light (1)
• Main distribution panel cabinet
• One 12v outlet (1) and dual USB charger
• One 120v outlet (1) with GFI protection
• Fire extinguisher
• CO monitor

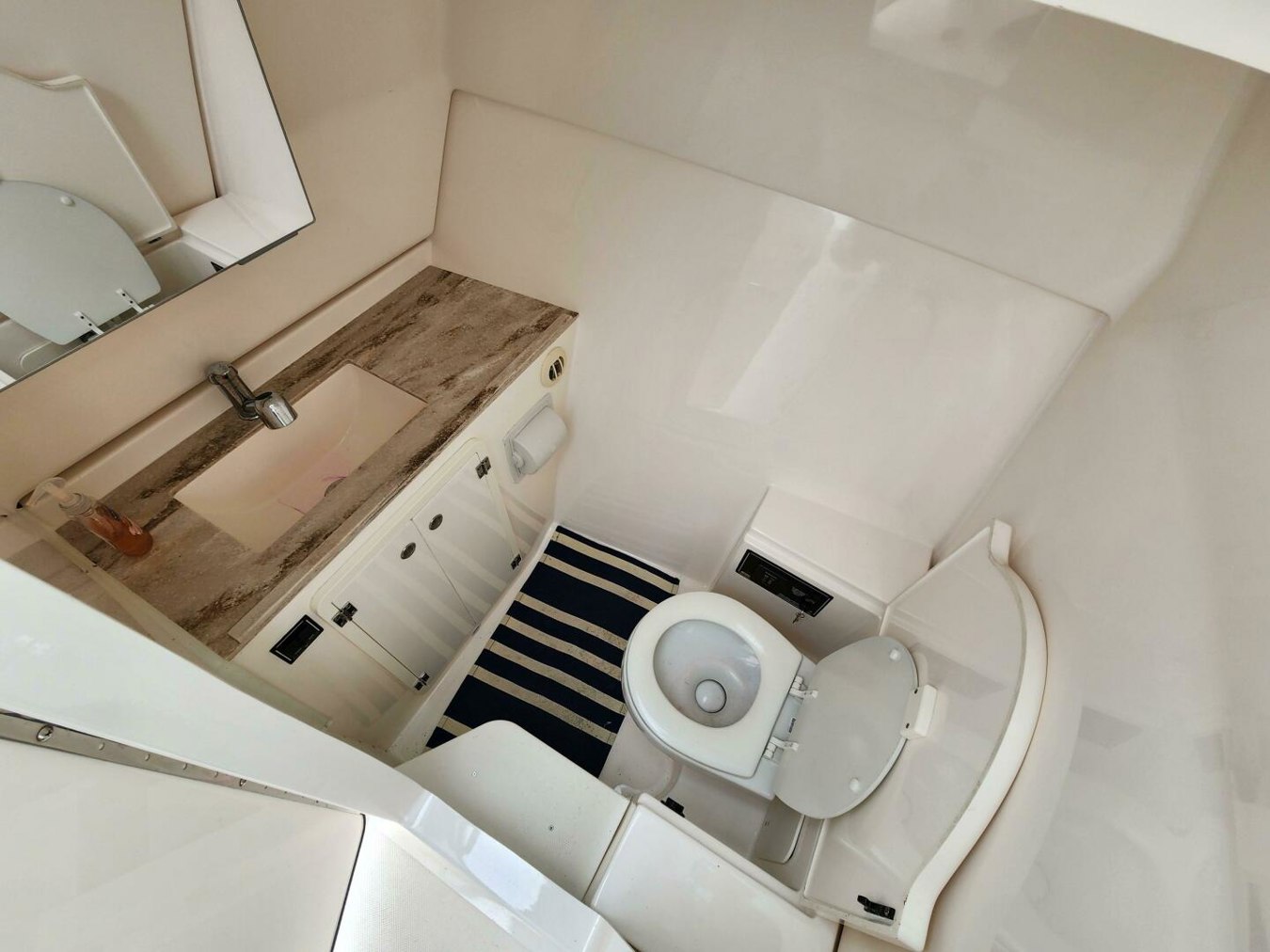

HEAD STARBOARD SIDE

• Single motion dual action console access door with gasket and 316L stainless steel locking latch
• Enclosed head compartment
• Vacuum flush marine head with 10 gallon holding tank, macerator discharge pump, deck pump-out fitting and bronze through hull fitting
• Fiberglass toilet seat cover
• Two switch panel with overhead LED light (1) LED floor accent light (1)
• Wet gear hanging feature
• Molded sink with corian® countertop, vanity mirror and pull-out hot/cold shower wand
• Under sink storage locker
• Shower sump box drain with automatic discharge and thru hull fitting
• Toilet tissue holder
• Towel ring
• One 120v outlet with GFI protection (1)

Hardtop

• Molded fiberglass hardtop integrated visor
• Aft structural hardtop supports
• Custom windshield system with tempered glass
• Combination anchor/stern LED all-around navigation light
• Four (4) tri color LED lights
• Fore and aft facing spreader lights
• 316L stainless steel fore/aft underside grab rails
• 60 Mil strataglassTM side curtains
• Integrated stereo speakers (4)
• Electric oval horn with stainless steel cover

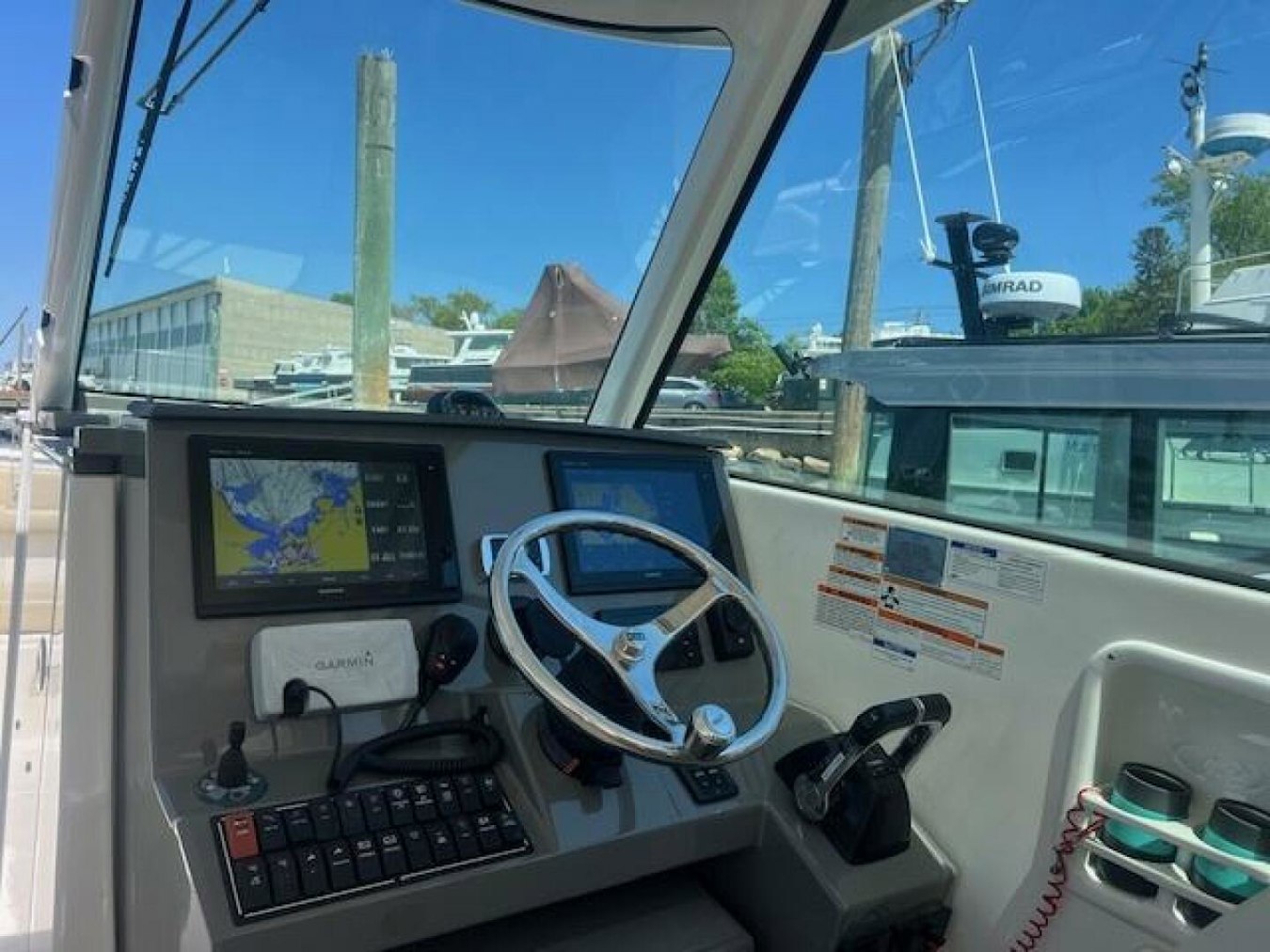

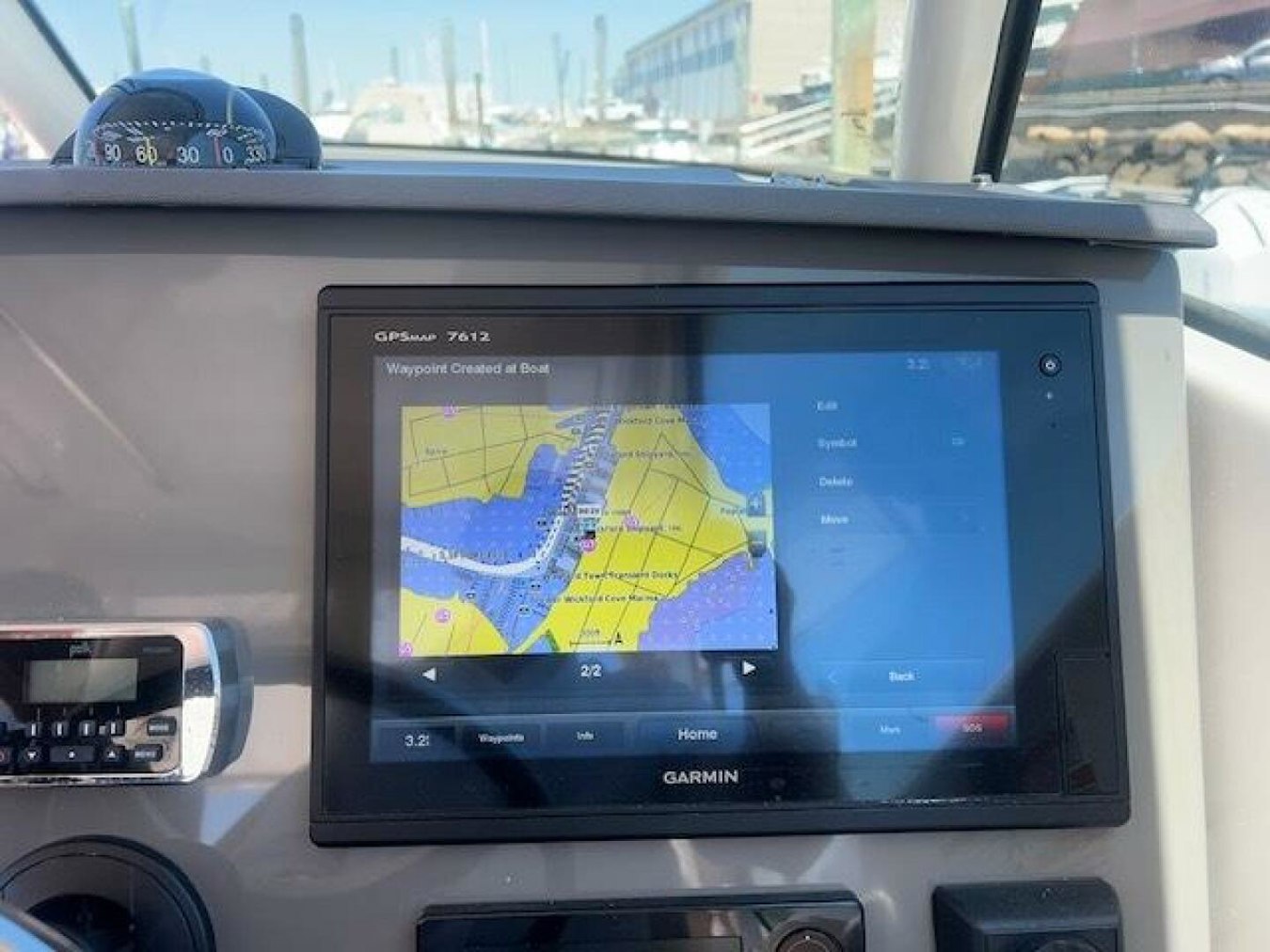

Helm

• Molded fiberglass aft tilting helm with instrumentation visor electronics mounting surface, fold out fiberglass foot rest/platform, and safety lanyard
• Teleflex tilt sport helm
• 316L stainless steel steering wheel with control knob and non-slip grip
• 12v switch panel
• Single windshield wiper with washer control
• Compass
• Trim tab control panel and indicator
• Waterproof stereo remote with full function display
• Glove box drawer with dedicated electronics cover storage
• One 12v outlet (1) and dual USB charger
• Helm fire extinguisher

Electrical Systems

• Ul® rated fully tinned, color coded copper wire
• Custom built, heat sealed, mechanically crimped, color coded battery cables
• Custom built, one piece electrical harness with water proof connectors and chafe protection

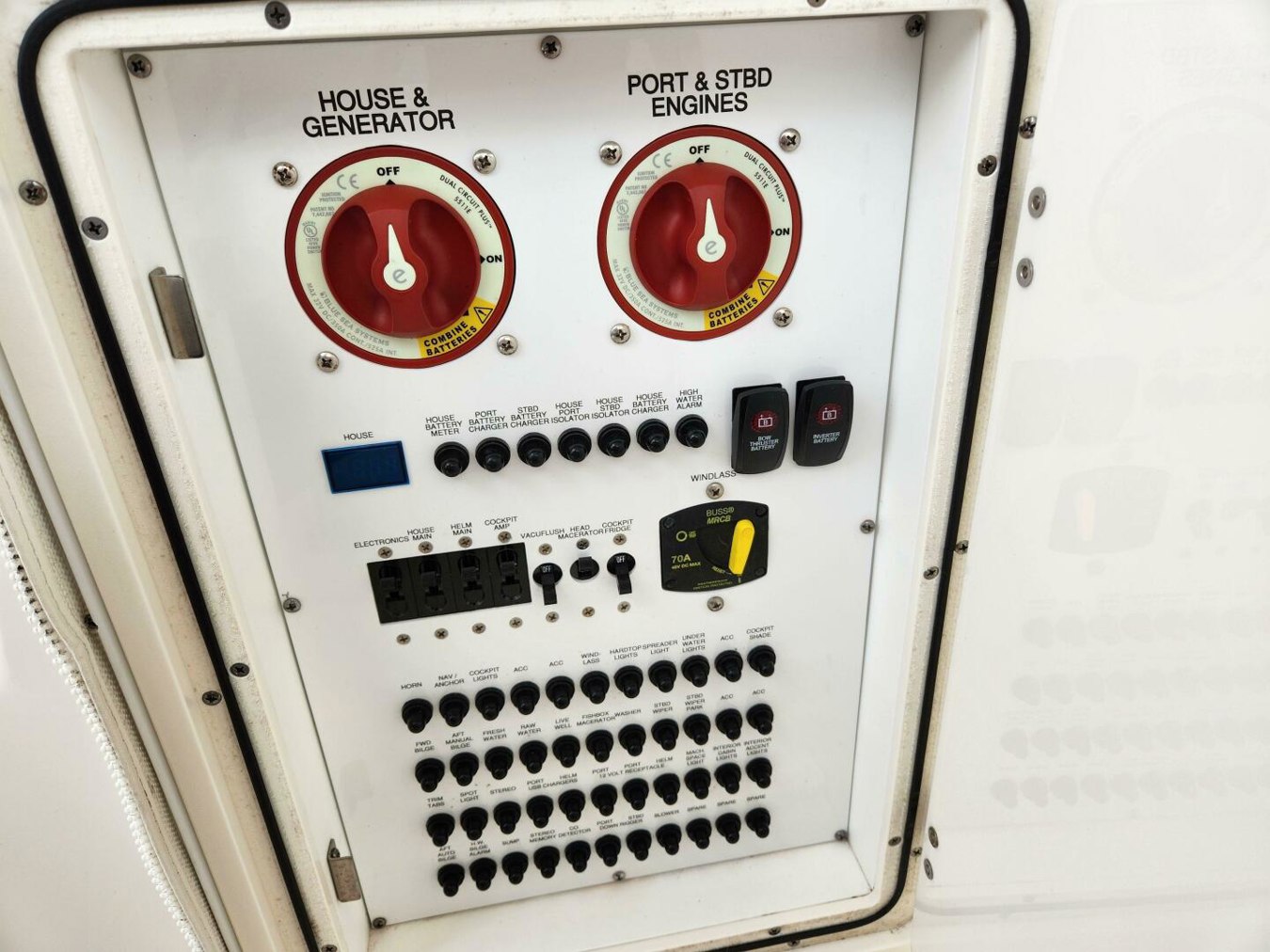

• Powder coated, aluminum, screen printed (front & back) main breaker panels
• Bonding system: thru hull fittings below water line, trim tabs, zinc anode and garboard drain
• Single 120v 30 AMP 60 cycle dockside power
• One 120v 30 AMP 50’ dockside power cord
• Two 120v GFI outlets (2)
• Two 12v outlets (2) and two USB outlets (2)
• One 40 AMP battery charger
• Four battery system: port engine (1) starboard engine (1), house (1) , bow thruster (1)
• One grounding bus bar
• Electronics fuse block
• Isolation transformer

Mechanical Space

• Molded interior white gel coat
• Molded hatch with gasket and stainless steel gas spring
• Molded bilge sump area
• Two 1500 GPH bilge pumps with one automatic float switch, one high water float switch and alarm with stainless steel clad composite thru hull fittings
• Fresh water pump with filter
• Raw water pump with sea strainer, sea cock and thru hull fitting fishbox evacuation pump with dedicated control valves

Fuel System

• EPA compliant lined twin rotomolded fuel tanks
• 300 gallon combined with engine pickups, shutoff valves and digital level indicator.
• Custom built fuel lines with mechanically crimped fittings
• Two Yamaha® water separating fuel filters with primer bulbs

Water System

• 30 gallon fresh water tank capacity
• Custom built reinforced color coded water hose
• Pressure sensing pump
• Dockside fresh water inlet with pressure regulator
• 120v/60 cycle 6 gallon hot water heater
• Cockpit shower with hot/cold mixing valve
• Fresh water distribution manifold
